Aurum Cantus G3 Si Aluminum Ribbon Tweeter |

|
G3Si is designed for large-scale OEM
high-end speaker system manufacturers. G3Si is a
middle type pure aluminum ribbon tweeter with
world-class quality, and also have an attractive price.
It is the best choice to match with your DVD-Audio/SACD
new products! G3Si is characterized by: - Very
light moving mass of aluminum ribbon (no heavy Kapton
layer underneath), giving a very extended frequency
response. - N45 NdFeB magnet (far superior to the N30
and N35 industry standards), for a 99dB/W/M high
efficiency. G3Si is not only wide in horizontal
dispersion, but also rich in harmonic, natural and
elegant in timbre. It is fit for all types of music
replay, especially an excellent performance when playing
orchestral, pizzicato and percussive
music.
|
Technical
data |
- Rated impedance: 6 ¦¸
- Rated power: 50 W
- Sensitivity: 99dB/w/m

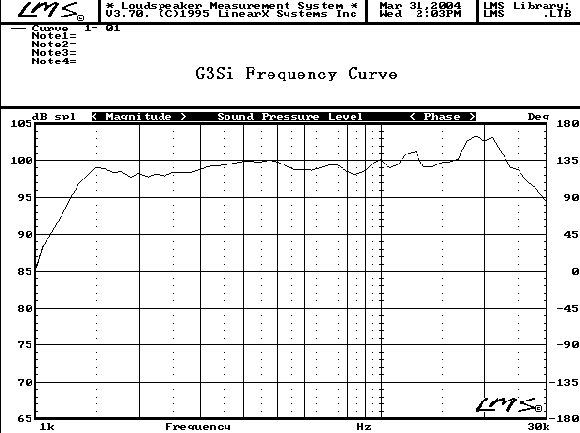

- Frequency range: 1400Hz£40KHz
- Dimension of aluminum ribbon(WLT):
8.5mm¡Á100mm¡Á0.01mm
- Shape of aluminum ribbon: wave
- Moving area of aluminum ribbon: 850mm2
- Gap flux: 0.6 Tesla
- Frequency cut recommended: over 2300Hz
- Material of mounting faceplate: aluminum, CNC
processing, surface with anodizing electroplating
finish.

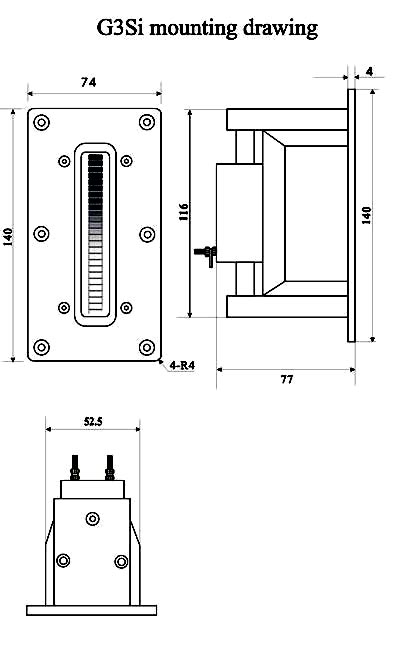

- Dimension of mounting faceplate: W74¡ÁH140¡ÁT4mm
- Outside dimension(WHD): 74¡Á140¡Á77
- Weight: 1.33kg/pc
| | |
 |
|





|
| |
