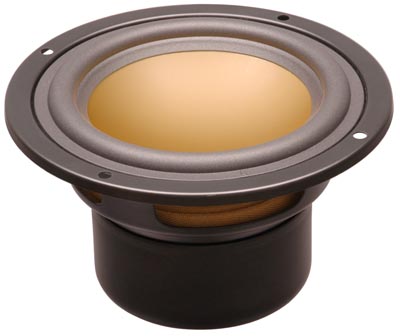

M4N Full-Frequency
Advanced alloy (magnesium and aluminum) cone, coated
with special damping material, having good rigidity and
dynamic stability, improving the sonical features of the
driver;
High power handling, heat-resistant Kapton® voice
coil former and heat-resistant CCAW voice coil wire;
Finite Element Analysis for shielded magnetic system with
long-throw linear excursion design;
Hi-Vi Symmetric Motor
Drive (SMD) technology makes the voice coil into a symmetric
driving magnetic field, thus acquiring symmetric driving
force, reducing voice coil inductance and back electromotive
force modulation, improving the controllability of the
speakers;
Finite Element Analysis for flat & rigid
iron frame, prevent the parasitic structural resonances;
Using leading technology of Small/Thiele parameters in
cabinet design;
Suitable for midrange, surround speakers
in a home theatre system, and also suitable for computer
multimedia speakers.
| Products Graph:
 |
Mechanical Drawing
(Magnify) | |
 |
Frequency Response
(Magnify) | |
 |
Impedance
(Magnify) | | |
 |
Bottom View
(Magnify) | |
 |
Top View
(Magnify) | |
 |
Part View
(Magnify) | | |
 |
|
| M4N Full-Frequency |
| Nominal Impedance (Z)(Ω) :
| 8 |
| Resonance Frequency (Fs)(Hz) :
| 69 |
| Nominal Power Handling (Pnom)(W) :
| 15 |
| Max Power Handing (Pmax)(W) :
| 30 |
| Sensitivity (2.83v/1m)(dB) :
| 82 |
| Weight (M)(Kg) :
| 0.60 |
| VC Diameter (mm) :
| 20 |
| DC (Re)(Ω) :
| 6.5 |
| VC Length (H)(mm) :
| 9.0 |
| VC Former :
| CCAV |
| VC Frame :
| Kapton |
| Magnet System :
| Shielded |
| Magnet Former :
| Ferrite |
| Force Factor (BL)(TM) :
| 3.1 |
| Gap Height (He)(mm) :
| 3.0 |
| Linear Excursion (Xmax)(mm) :
| 3.0 |
| Suspension Compliance (Cms)(uM/N) :
| 1080 |
| Mechanical Q (Qms) :
| 5.39 |
| Electrical Q (Qes) :
| 1.35 |
| Total Q (Qts) :
| 1.08 |
| Moving Mass (Mms)(g) :
| 4.8 |
| Effective Piston Area (Sd)(m2) :
| 0.0053 |
| Equivalent Air Volume (Vas)(L) :
| 4.3 |
| Cabinet Type :
| Sealed |
| Recommended Box Volume(Vb)(L) :
| 4 |
| -3dB Cut-Off Frequency(F3)(Hz) :
| 70 |
|
|
| | | | |
