NS SERIES 28-1177S
  • SOFT FABRIC DOME DIAPHRAGM COATING WITH HIGH LOSS MATERIAL
  • FERROFLUID COOLED
  • DAMP WOOL IN CAVITY OF POLE PIECE
  • ABS FRONT PANEL
  • NEODYMIUM DESIGN



 28mm FABRIC DOME/NEODYMIUM

DIAPHRAGM MTL    Fabric
SURROUND MTL N/A
NOMINAL IMPEDANCE 8 W
DCR IMPEDANCE 6 W
SENSITIVITY 1W/1m 90 dB

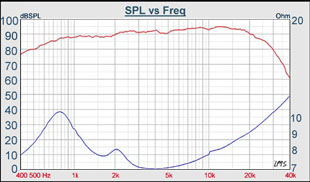

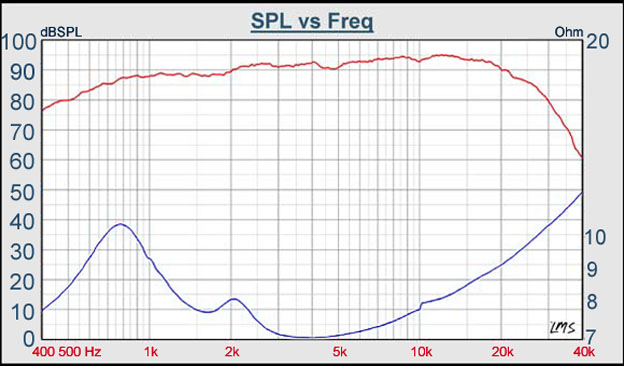

FREQUENCY RESPONSE 775-25K Hz
FREE AIR RESONANCE 775 Hz
VOICE COIL DIAMETER 28 mm
AIR GAP HEIGHT 2 mm
RATED POWER INPUT 15 W
MAXIMUM POWER INPUT 120 W
FORCE FACTOR, BL N/A
MAGNET WEIGHT   ( oz) Neodymium
MOVING MASS N/A
FERRO FLUID ENHANCED Yes
SUSPENSION COMPL. N/A
EFFEC.PISTON AREA N/A
Levc 0.04 mH
Zo 10.48 ohm
X-max N/A
Vas N/A
Qts N/A
Qms N/A
Qes N/A
