F SERIES W2-803SK

  • FULL RANGE DESIGN
  • ABS BASKET, MAGNETICALLY SHIELDED
  • SILVER PPM CONE WITH R SHAPE TPR SURROUND
  • NEODYNIUM MAGNET DESIGN
  • GOOD FOR CAR, HOME THEATER, MULTIMEDIA APPLICATION
  • SPECIAL ALUMINUM PHASE PLUG TO PROVIDE WIDER DISPERSION AND HEAT SINK





 2" POLYCONE  FULL RANGE
DIAPHRAGM MTL Silver PPM
SURROUND MTL TPR
NOMINAL IMPEDANCE 4 W
DCR IMPEDANCE 3.6 W
SENSITIVITY 1W/1m 85 dB

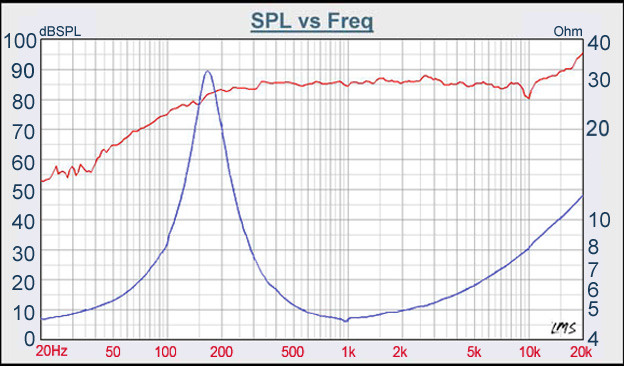

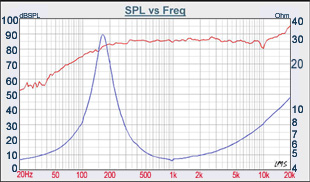

FREQUENCY RESPONSE 160-20K Hz
FREE AIR RESONANCE 160 Hz
VOICE COIL DIAMETER 20.4 mm
AIR GAP HEIGHT 3.0 mm
RATED POWER INPUT 8 W
MAXIMUM POWER INPUT 16 W
FORCE FACTOR, BL 2.69 TM
MAGNET WEIGHT    ( oz) Neodymium
MOVING MASS 1 g
FERRO FLUID ENHANCED No
SUSPENSION COMPL. 1051 MN-1
EFFEC.PISTON AREA 0.0013 M2
Levc 0.04 mH
Zo 33 ohm
X-max 1 mm
Vas 0.25 Litr.
Qts 0.40
Qms 3.56
Qes 0.46
