F SERIES W3-1319SA

  • FULL RANGE FREQUENCY RESPONSE
  • HIGH POWER LOADING DESIGN
  • STAMPING STEEL BASKET, VC VENTED DESIGN
  • BAMBOO FIBER PAPER CONE WITH SANTOPRENE SURROUND
  • MAGNETICALLY SHIELDED
  • UNDERHUNG MOTOR DESIGN
  • LOW 2nd,3rd DISTORTION DESIGN



 3" PAPER FULL RANGE
DIAPHRAGM MTL Paper
SURROUND MTL Santoprene
NOMINAL IMPEDANCE 8 W
DCR IMPEDANCE 6.6 W
SENSITIVITY 1W/1m 86 dB

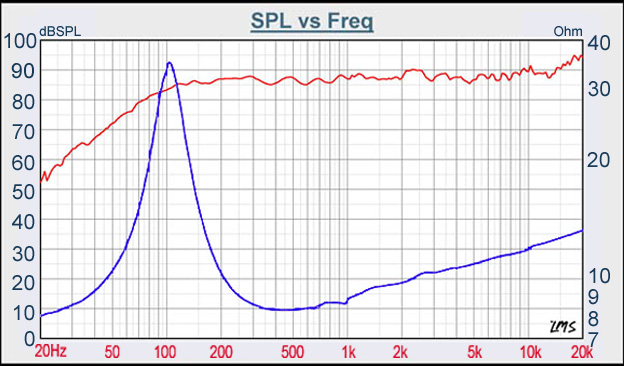

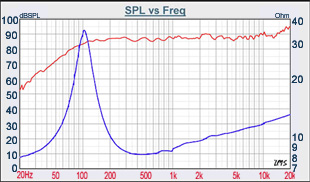

FREQUENCY RESPONSE 110-20K Hz
FREE AIR RESONANCE 110 Hz
VOICE COIL DIAMETER 18.4 mm
AIR GAP HEIGHT 6 mm
RATED POWER INPUT 12 W
MAXIMUM POWER INPUT 25 W
FORCE FACTOR, BL 3.53 TM
MAGNET WEIGHT    (6.2oz) 175 g
MOVING MASS 2 g
FERRO FLUID ENHANCED No
SUSPENSION COMPL. 1215 uMN-1
EFFEC.PISTON AREA 0.0032 M2
Levc 0.012 mH
Zo 31 ohm
X-max 0.5 mm
Vas 1.77 Litr.
Qts 0.55
Qms 2.96
Qes 0.68
