| FSERIES | W3-316A |
   |
|
| ||||
| DIAPHRAGM MTL | PPM | ||||
| SURROUND MTL | Santoprene | ||||
| NOMINAL IMPEDANCE | 8 W | ||||
| DCR IMPEDANCE | 6.6 W | ||||
| SENSITIVITY 1W/1m | 88 dB | ||||

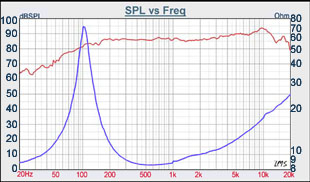

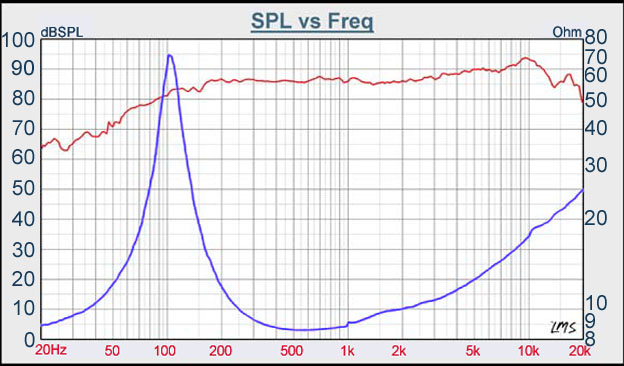

| FREQUENCY RESPONSE | 100-20k Hz | ||||
| FREE AIR RESONANCE | 100 Hz | ||||
| VOICE COIL DIAMETER | 20 mm | ||||
| AIR GAP HEIGHT | 4 mm | ||||
| RATED POWER INPUT | 15 W | ||||
| MAXIMUM POWER INPUT | 30 W | ||||
| FORCE FACTOR, BL | 4.37 TM | ||||
| MAGNET WEIGHT ( 8oz) | 227 g | ||||
| MOVING MASS | 2 g | ||||
| FERRO FLUID ENHANCED | No | ||||
| SUSPENSION COMPL. | 1181MN-1 | ||||
| EFFEC.PISTON AREA | 0.0032M2 | ||||
| Levc | 0.1507mH | ||||
| Zo | 102.752ohm | ||||
| X-max | 1.3 mm | ||||
| Vas | 1.72Litr. | ||||
| Qts | 0.43 | ||||
| Qms | 6.68 | ||||
| Qes | 0.46 | ||||
 |
