| F SERIES | W3-583SA |
|
| ||||
| DIAPHRAGM MTL | Paper Silver Color | ||||
| SURROUND MTL | Santoprene | ||||
| NOMINAL IMPEDANCE | 8 W | ||||
| DCR IMPEDANCE | 6.6 W | ||||
| SENSITIVITY 1W/1m | 87 dB | ||||

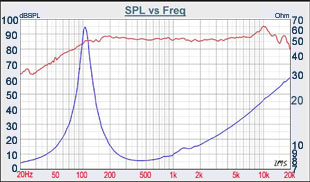

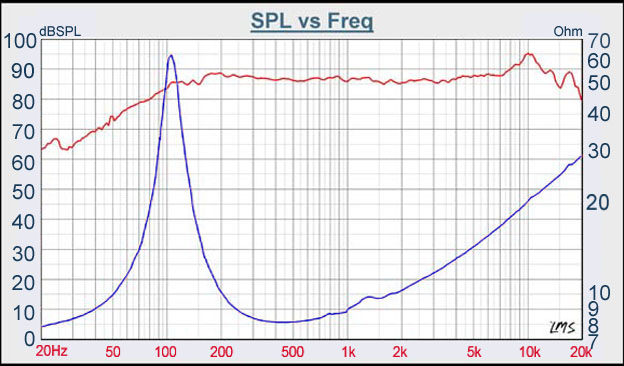

| FREQUENCY RESPONSE | 110-20K Hz | ||||
| FREE AIR RESONANCE | 110 Hz | ||||
| VOICE COIL DIAMETER | 20.4 mm | ||||
| AIR GAP HEIGHT | 6 mm | ||||
| RATED POWER INPUT | 12 W | ||||
| MAXIMUM POWER INPUT | 25 W | ||||
| FORCE FACTOR, BL | 3.43 TM | ||||
| MAGNET WEIGHT (4oz) | 117 g | ||||
| MOVING MASS | 2 g | ||||
| FERRO FLUID ENHANCED | No | ||||
| SUSPENSION COMPL. | 1269MN-1 | ||||
| EFFEC.PISTON AREA | 0.0032M2 | ||||
| Levc | 0.35mH | ||||
| Zo | 62.2ohm | ||||
| X-max | 0.2 mm | ||||
| Vas | 1.85 Litr. | ||||
| Qts | 0.59 | ||||
| Qms | 5.60 | ||||
| Qes | 0.66 | ||||
 |
